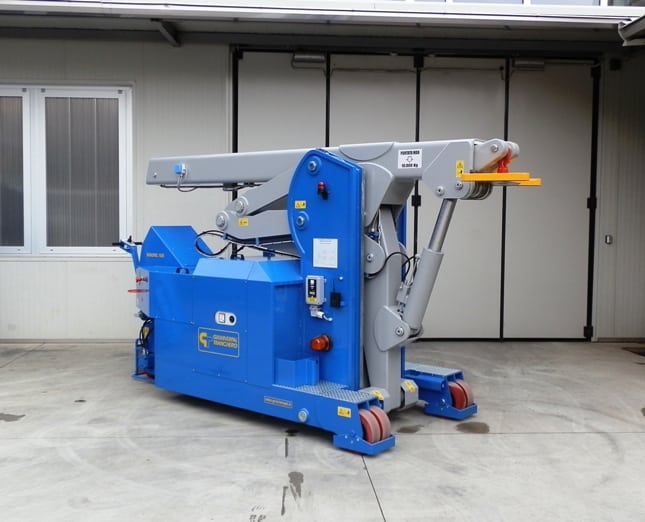

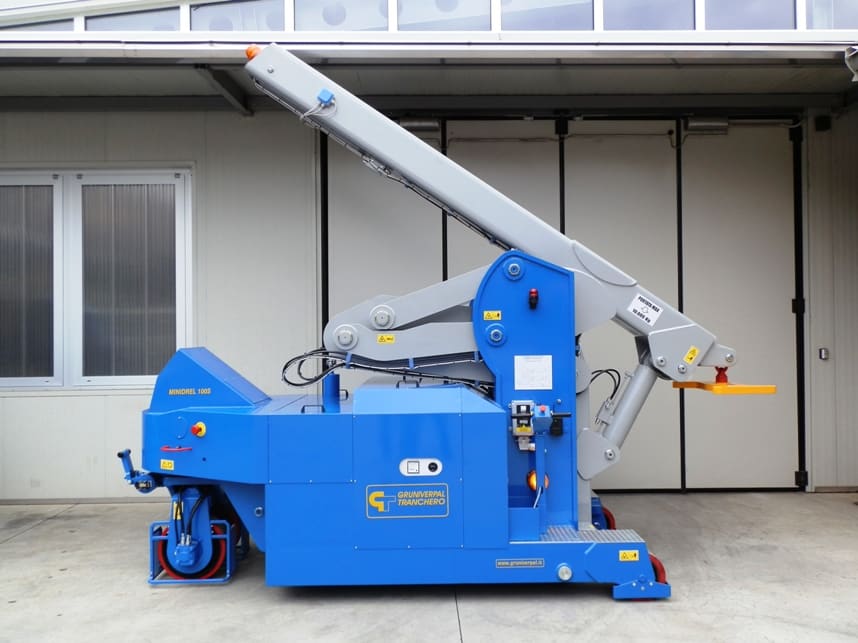

Grúa eléctrica MINIDREL 100S_ARR
Capacidad de carga hasta 10.000 kg.

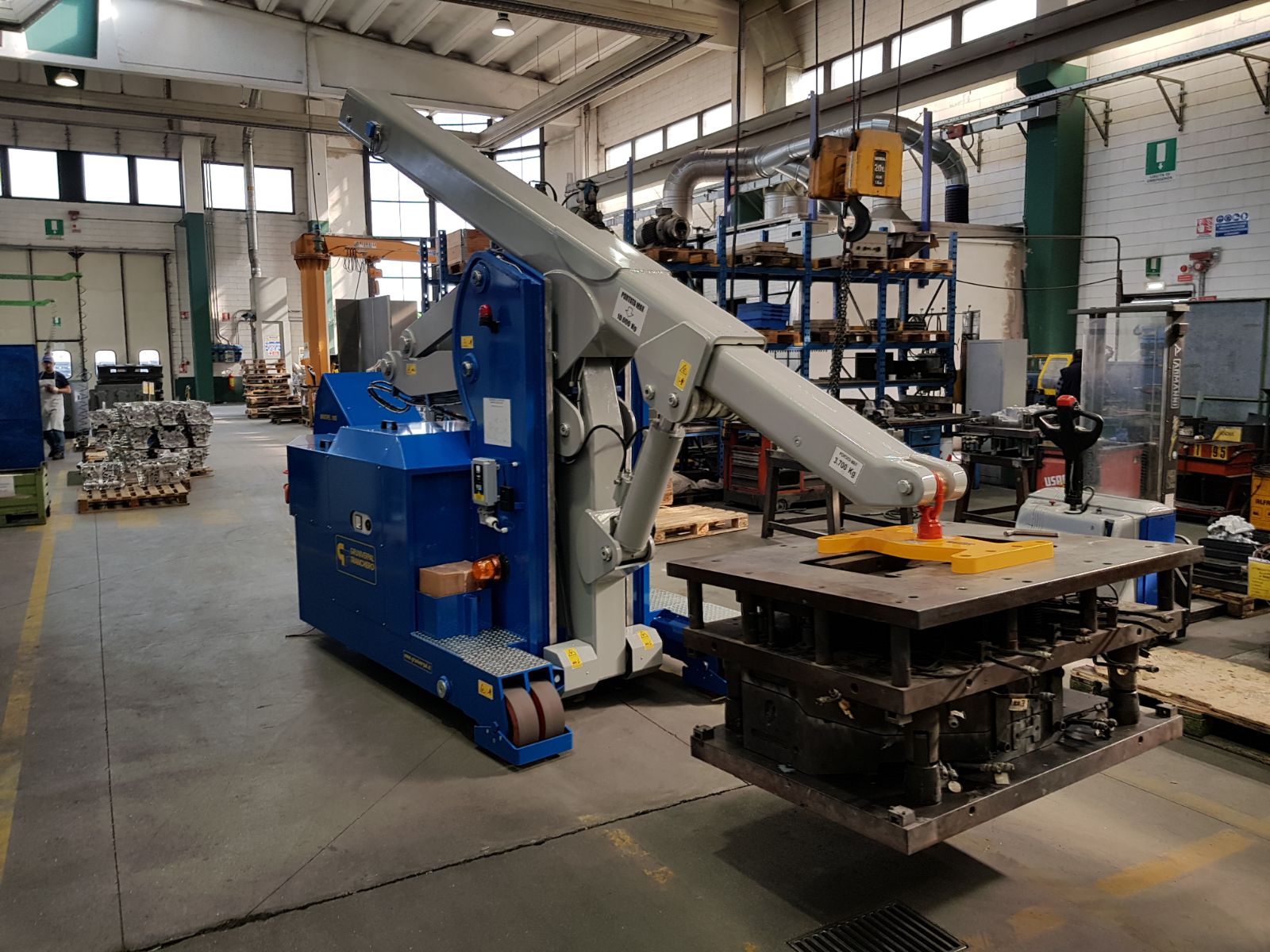

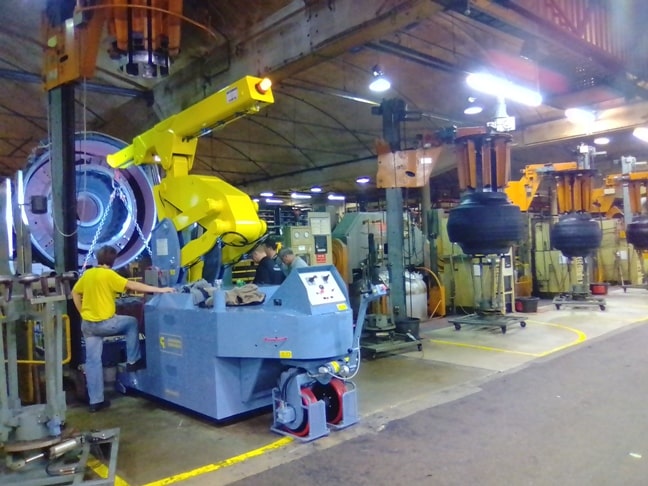

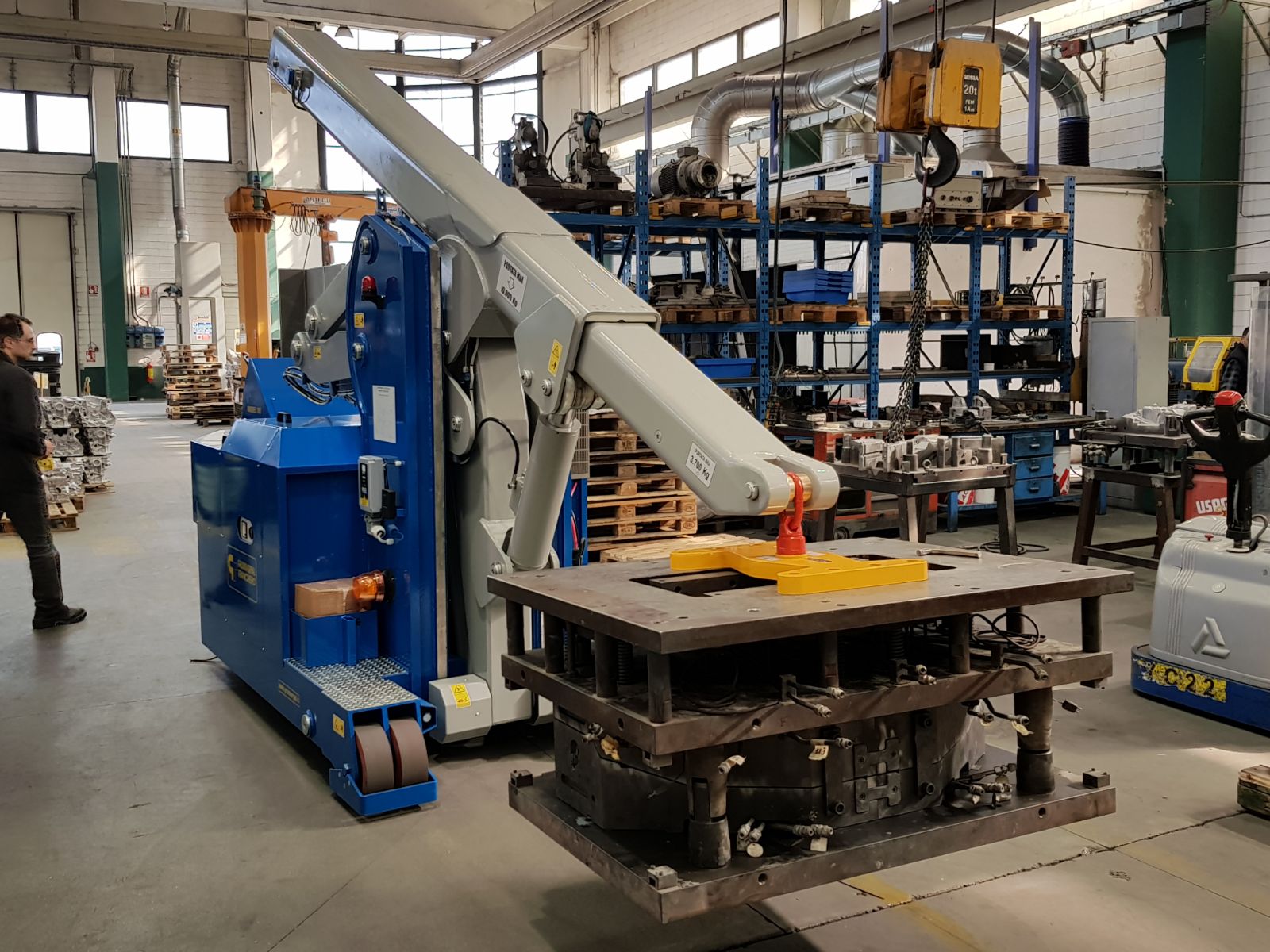

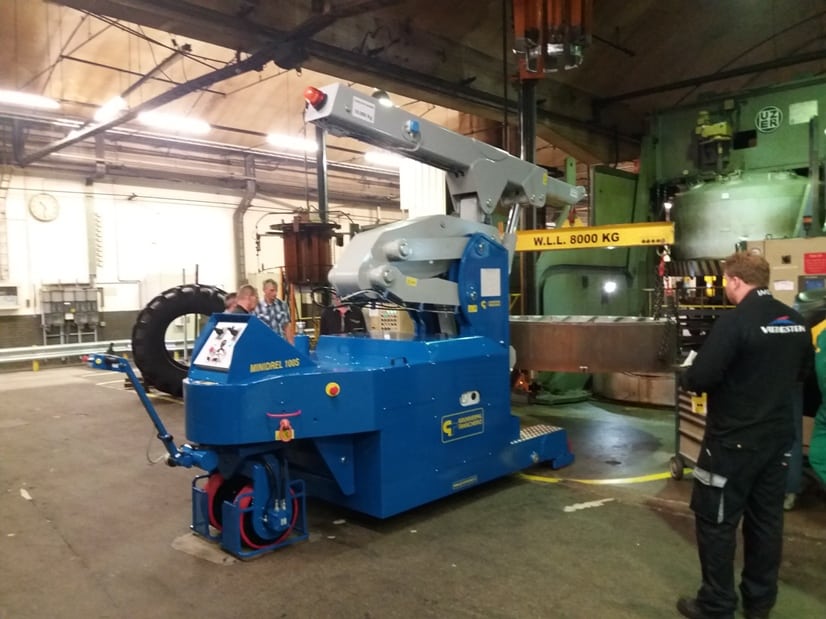

La MINIDREL 100S_ARR es la grúa móvil eléctrica para manipulación de moldes ideal para su uso en el sector de producción de neumáticos.
El reducido tamaño de las grúas eléctricas GT Cranes permite un manejo ágil en espacios interiores como los industriales.
Especificaciones técnicas
| Características | Serie MINIDREL 100S_ARR |
|---|---|
| Maximum load capacity | 10.000 Kg |
| Min height of hook elevation | 100 mm |
| Standard max. hook’s height from the ground | 3.600 mm |
| Possibility to extend height hasta (option) | – |
| Standard max. telescopic extension | 1.350 mm |
| Capacity at standard max. telescopic extension | 10.000 Kg |
| Possibility to extend telecopic extension hasta (option) | 3.500 mm |

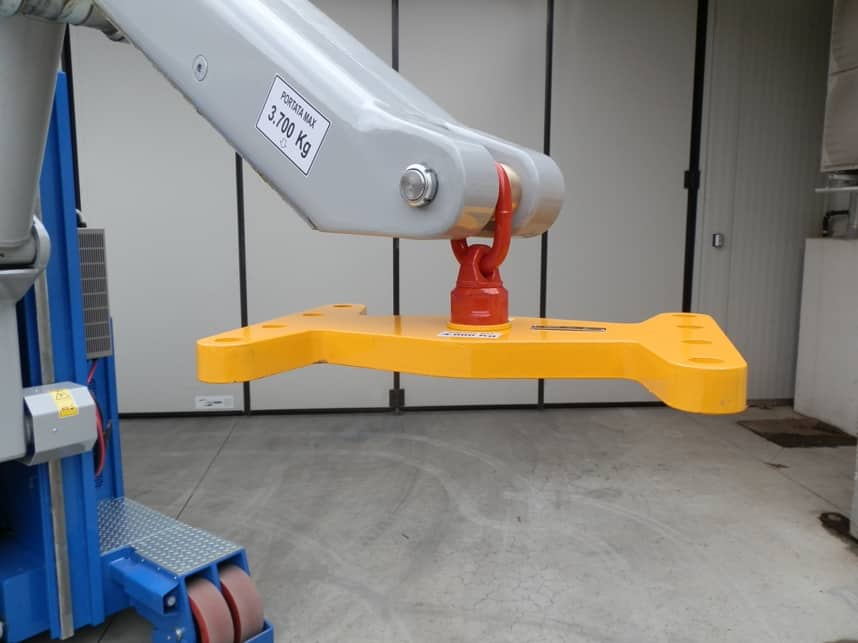

| Capacity at max.telescopic extension (point 7) | 3.700 Kg |
| Rotation | – |
| Wheelbase | 2.920 mm |
| Dimensions – lenght | 3.550 mm |
| Dimensions – width | 1.490 mm |
| Dimensions – height | 2.200 mm |
| Adjustable speed from / to | From 0 to 60 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 4 x Ø300 x 140 mm |
| Rear driving wheel | 2 x Ø 450 x 110 mm |
| Wheels material | Polyurethane |
| Drive | REAR WHEEL |
| Total weight | 11.800 Kg |
| Electric motor power | 8,0 KW / 48 cc. |
| Hardened battery (standard) | 560 Ah / 48V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility of carrying out all movements with the max. load | ● |
