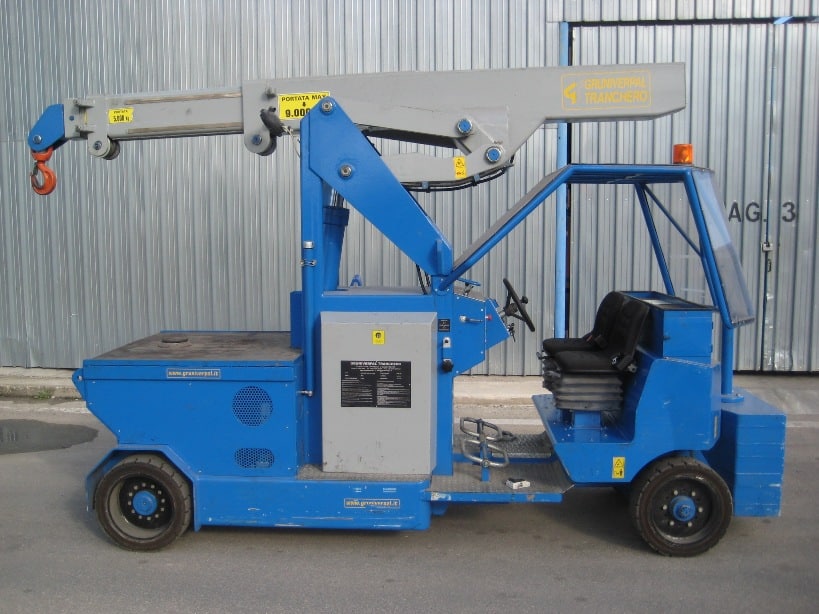

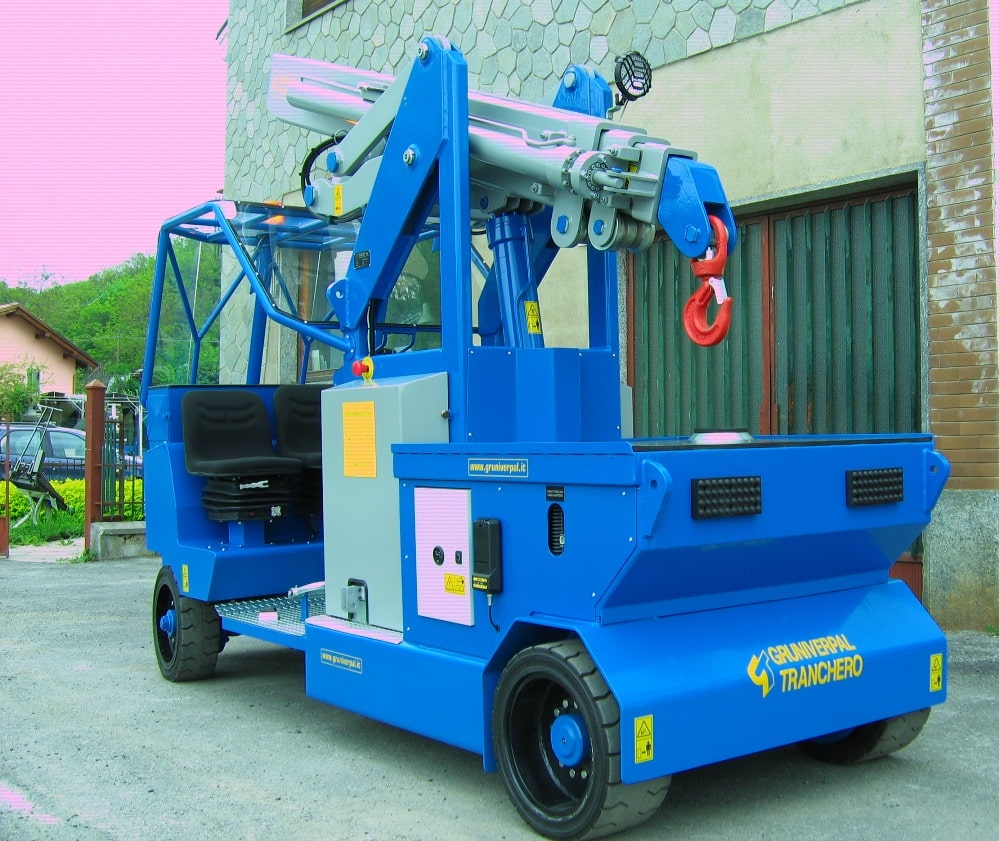

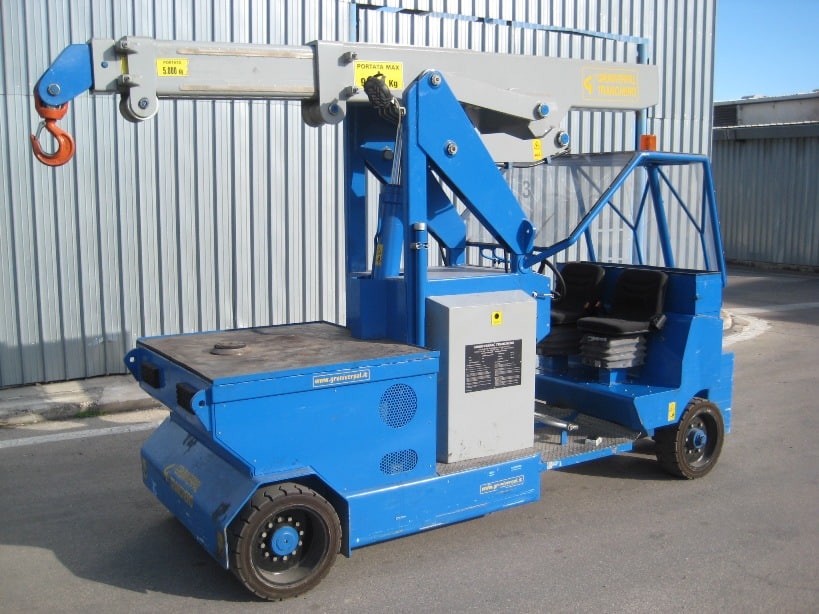

Grúa eléctrica MINIDREL 90B_MSR
Capacidad de carga hasta 9.000 kg.

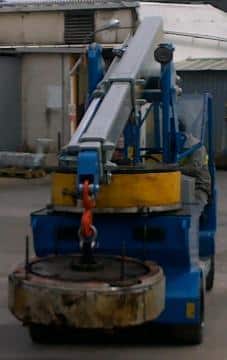

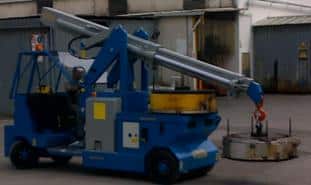

La MINIDREL 90B_MSR es la grúa móvil eléctrica para manipulación de moldes ideal para su uso en el sector de producción de neumáticos.

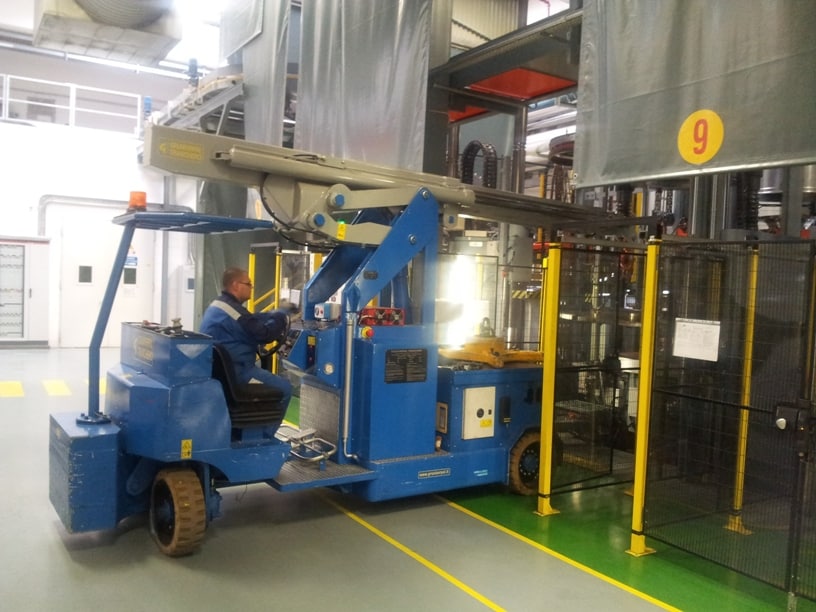

El reducido tamaño de las grúas eléctricas GT Cranes permite un manejo ágil en espacios interiores como los industriales.
Especificaciones técnicas
| Características | Serie MINIDREL 90B_MSR |
|---|---|
| Maximum load capacity | 9.000 Kg |
| Standard min. hook’s height from the ground | 100 mm |
| Standard max. hook’s height from the ground | 5.800 mm |
| Possibility to extend height hasta (option) | – |
| Standard max. telescopic extension | 4.900 mm |
| Capacity at standard max. telescopic extension | 1.900 Kg |
| Possibility to extend telecopic extension hasta (option) | – |
| Capacity at max.telescopic extension (point 7) | – |
| Rotation | – |
| Wheelbase | 2.900 mm |
| Dimensions – lenght | 3.810 mm |
| Dimensions – width | 1.500 mm |
| Dimensions – height | 2.650 mm |
| Adjustable speed from / to | From 0 to 100 m/min |
| Max. surmountable slope ( unloaded ) | 16% |
| Max. surmountable slope ( loaded ) | 8% |
| Front wheels | 2 x ø 533 x 230 mm |
| Rear driving wheel | 2 x ø 533 x 178 mm |
| Wheels material | Cushion |
| Drive | REAR WHEEL |
| Total weight | 9.700 Kg |
| Electric motor power | 10,0 KW / 48 cc. |
| Hardened battery (standard) | 660 Ah / 48V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
